Description

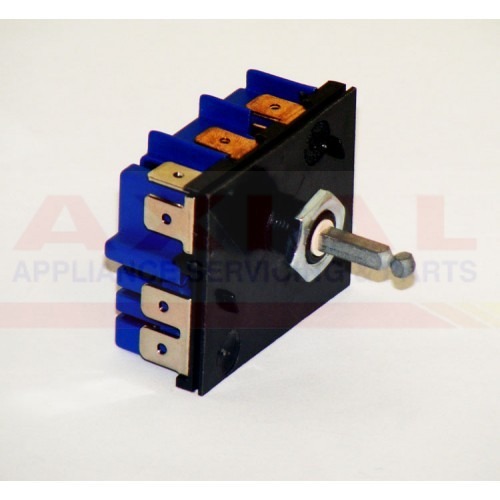

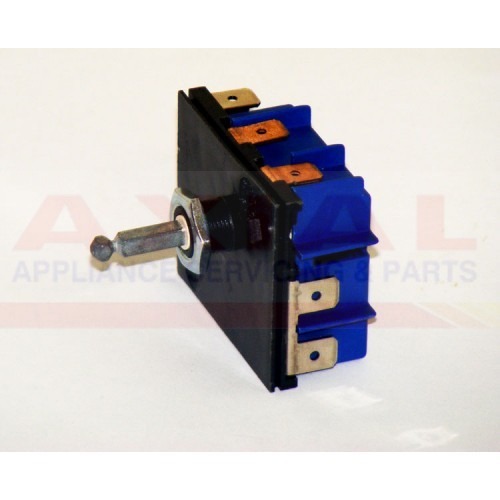

Energy Regulator SM-800K

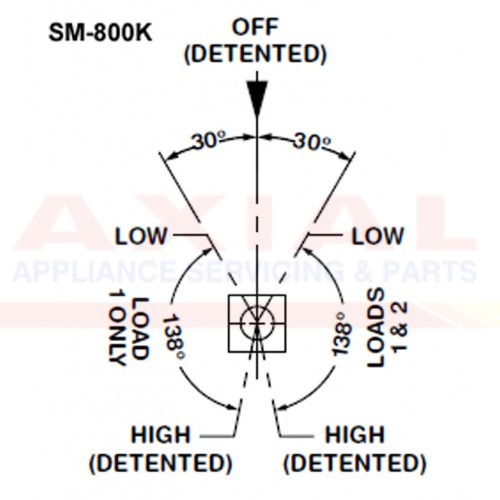

15A Dual (divided) Control with pilot switch, 3/16 shaft (With metal shaft to suit older stoves)
Supersedes TD3V 800, TDP205, TD5217, TD6207, TD2101, TD3101, TD3102, TD3224, TD3424, EMD55, TD3103, TD3203/4, TD5207, INF82314K, MD3157, 95538, TD3210
A typical symptom of a faulty Control is when the element is on high all the time, regardless of knob position or will not go at all. It is recommended that a qualified technician fit this part as wiring can vary due to other Controls being originally used.
